THE WHIZITUP – Self Propelled Auger

Australian Made and Built to Last!

Our Tow Away, Ready to Go WHIZITUP Augers have superior features integrated into a robust design at a price you can afford!

We currently manufacture 46 ft and 53 ft Whizitup Augers in either 9″ or 9.5″ diameter.
For optimal output efficiency the auger screw is mechanically driven via auger-top driveshaft; while hydraulic power makes operating the wheel drive, twin jockey wheel steering, winch and tail lift a breeze. The hot dip galvanising ensures all surfaces are coated preventing any rust.  Complete with motor and poly hopper these “off the shelf” augers are an easy to use, affordable and durable solution for your grain handling requirements.

Check out the features for yourself! (Specifications and Pricing BELOW)

THE SPECIAL FEATURES ON OUR 9″, 9.5″ & 10″ WHIZITUP AUGER MODELS

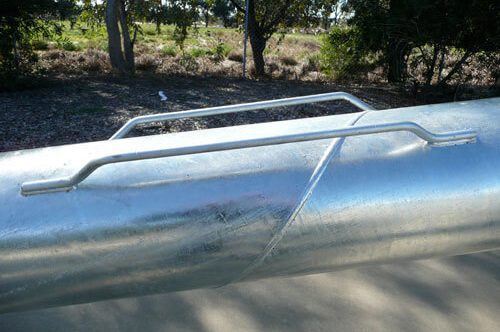

              • Auger Barrel & all Undercarriage Hot Dip GALVANIZED
              • 2.5mm HIGH TENSILE Auger Barrel as NEW standard
              • 5mm Continuous Flihard Flighting with Double Start 5mm SEGMENTS at pickup on 9″ and 10″ Whiz
              • (4mm Continuous Carbon Flight with Double Start 5mm SEGMENTS at pickup on 9.5″ Whiz)

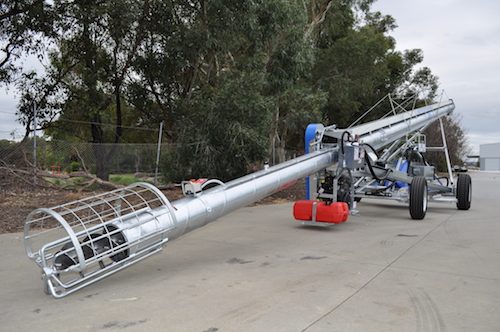

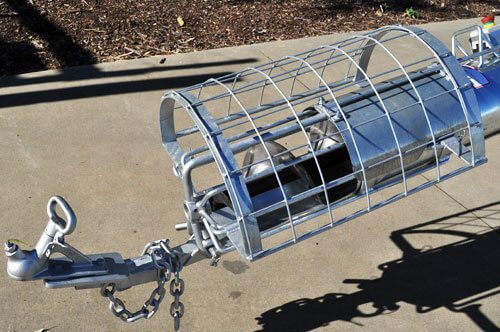

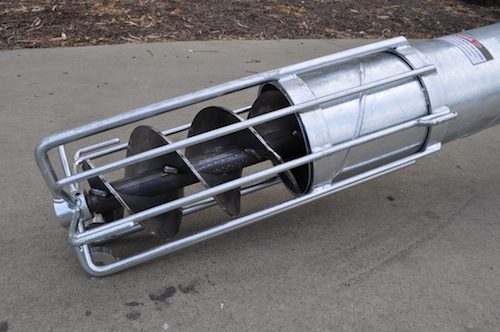

              • CAGE FRAME with Replaceable Bronze Bush

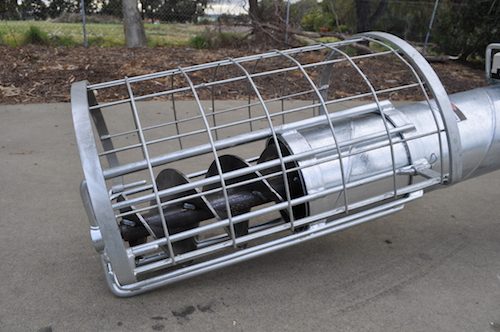

              • Detachable SECONDARY SAFETY GUARD over cage
              • Removable TOW HITCH with 50mm ball coupling / draw bar

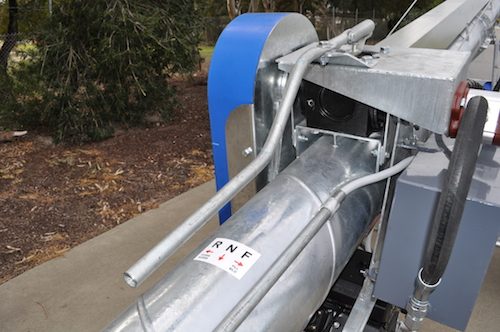

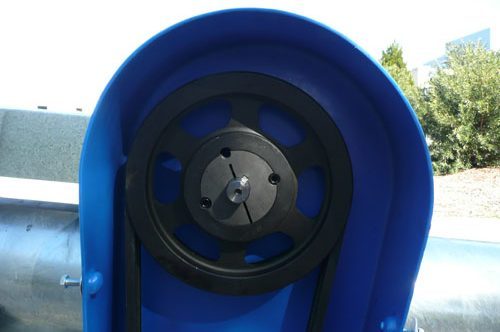

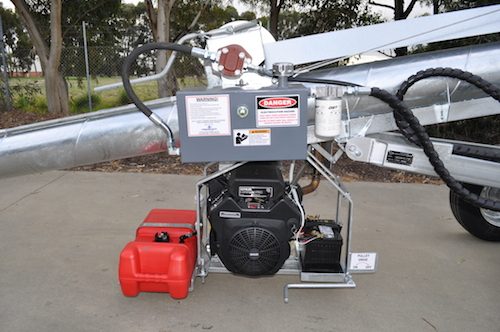

              • A self-levelling MOTOR MOUNT with short twin belt drive
              • Reversible 30HP GEARBOX provides for cleanout and the power source for the hydraulics
              • 1″ mechanical Drive shaft allows the maximum motor HP to drive the auger
              • Kohler Electric start Petrol Motor with 22L quick release fuel tank

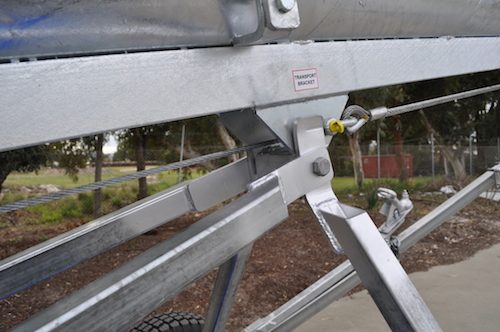

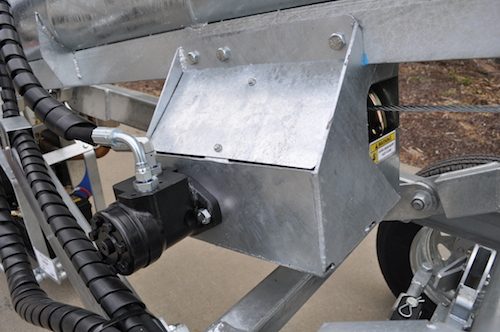

              • HYDRAULIC WINCH with slide rollers for raising/lowering auger

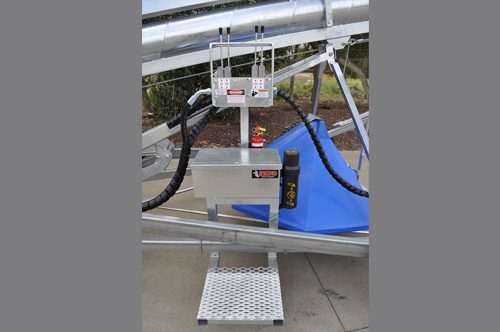

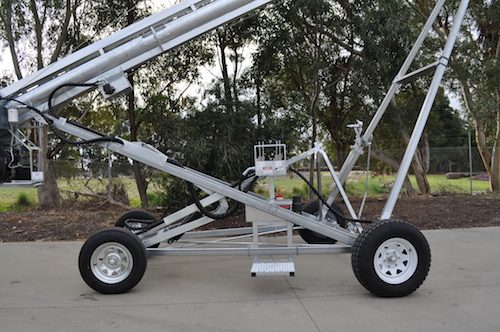

              • Stand on WORK PLATFORM for Auger Drive operation

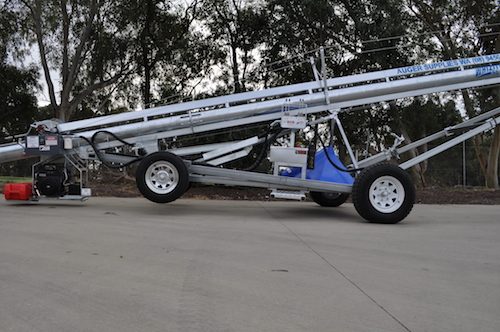

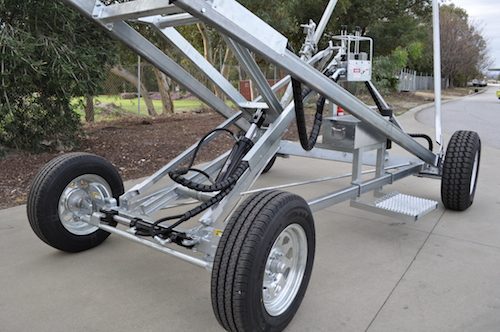

              • UNDERCARRIAGE in 4mm and 5mm RHS
              • AXLE in 125×65 Channel
              • WHEELS are Landcruiser trailer 15″ six stud with new tyres

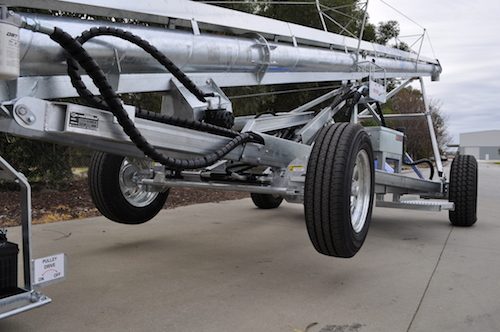

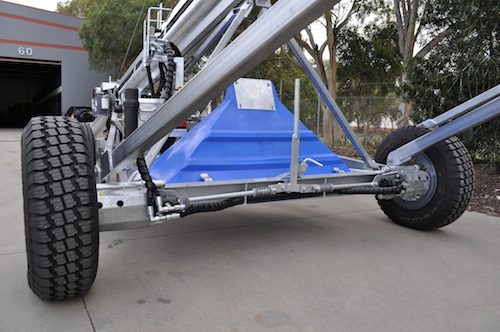

              • Twin JOCKEY WHEELS (Ford 14″ rims) for stability & steering
              • Jockey wheel assembly raises for transport

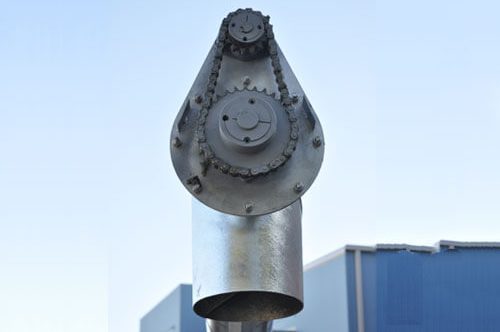

              • Taper-lock Pulleys and Sprockets

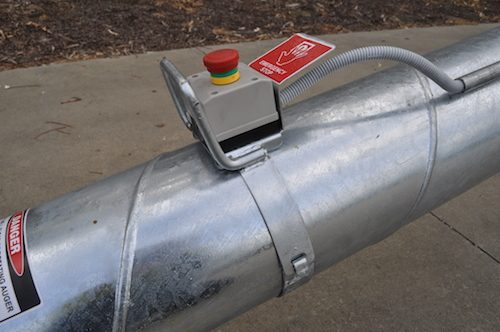

              • All necessary SAFETY covers and emergency stop for agricultural use

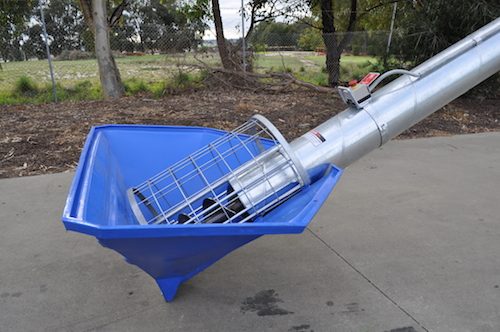

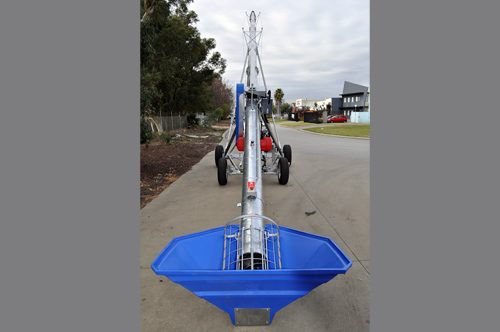

              • Strapless Removable plastic HOPPER

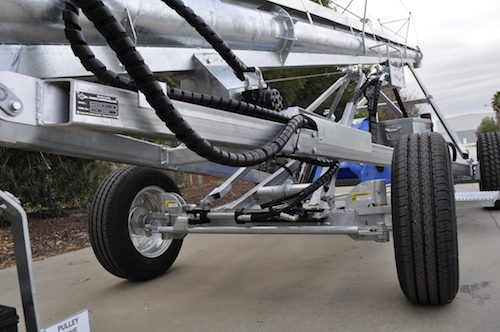

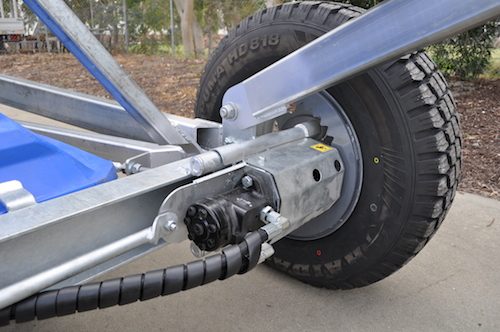

              • Heavy duty SELF-PROPELLED hydraulic wheel drive system
              • Hydraulic jockey wheel STEERING
              • Hydraulic Ram on Tail Lift

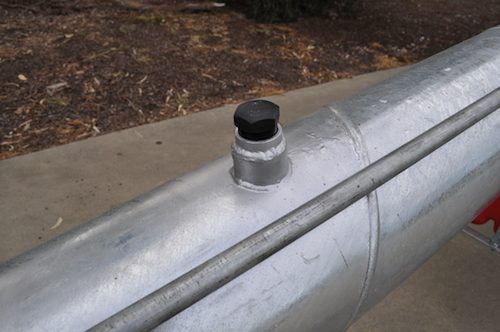

              • Pickle Port
              • Heavy Duty Battery
              • Toolbox and 1.5kg Fire Extinguisher

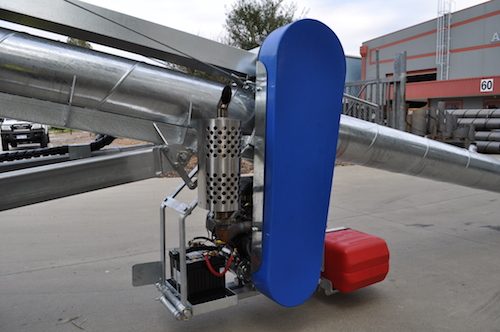

              • STAINLESS STEEL muffler and manifold
            • *Inlet cage choke (*optional extra)

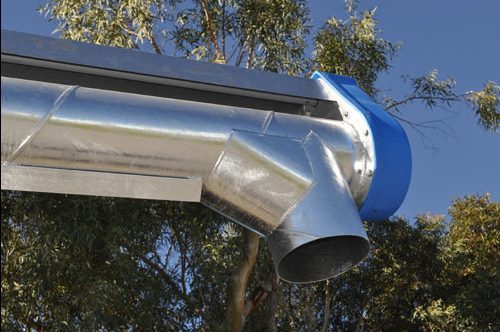

            • *Poly 4 bucket outlet shute with straps (*optional extra)
            • *Motor upgrades (*optional extra)



What size Auger Do I need?



Our 46 foot augers sitting at 40 degrees elevation angle have a clearance of 8.7m under the outlet shute, with an overhang of 4.7m from wheels to outlet shute.

Our 53 foot augers sitting at 40 degrees elevation angle have a clearance of 10m under the outlet shute, with an overhang of 5.7m from wheels to outlet shute.



WHIZITUP PRICING & MOTOR SIZES (current July 2023)



                • 9″ x 46′ Whizitup – Basic – No wheel drive – with 20hp Kohler petrol engine (standard) – $20,800 + GST
                • 9″ x 46′ Whizitup – Self Propelled – with 23.5hp Kohler petrol engine (standard) – tba
                • 9″ x 46′ Whizitup – Self Propelled – with 25hp Kohler petrol engine (upgrade) – $31,170 + GST
                • 9″ x 53′ Whizitup – Self Propelled – with 25hp Kohler petrol engine (standard) – $31,630 + GST
                • 9″ x 53′ Whizitup – Self Propelled – with 30hp Hiearns HR2V92 diesel engine (new option)- $31,670 + GST
                • 9.5″ x 46′ Whizitup – Self Propelled – with 25hp Kohler petrol engine (standard) – $31,830 + GST
                • 9.5″ x 46′ Whizitup – Self Propelled – with 30hp Hiearns HR2V92 diesel engine (new option) – $31,870 + GST
                • 9.5″ x 53′ Whizitup – Self Propelled – with 30hp Hiearns HR2V92 diesel engine (standard) – $32,320 + GST
                • 9.5″ x 53′ Whizitup – Self Propelled – with 27hp Kohler petrol engine (special order) – $33,200 + GST
                • NEW 10″ x 53′ Whizitup – Self Propelled – with 30hp Hiearns HR2V92 diesel engine (standard) – $32,990 + GST
                • NEW 10″ x 46′ Whizitup – Self Propelled – with 30hp Hiearns HR2V92 diesel engine (standard) – $32,750 + GST
                OPTIONAL EXTRAS (current July 2023)
                • Sliding Inlet Cage Choke Galvanized – $120 + GST
                • Poly 4 bucket outlet shute with straps – $140 + GST

We also supply replacement components for the Whizitup Augers if you are in need of repair and are happy to supply complete top sections (drop on barrel including gearbox AND INTERNAL AUGER) for anyone wishing to engineer and manufacture their own undercarriage, or retrofit an existing undercarriage.
