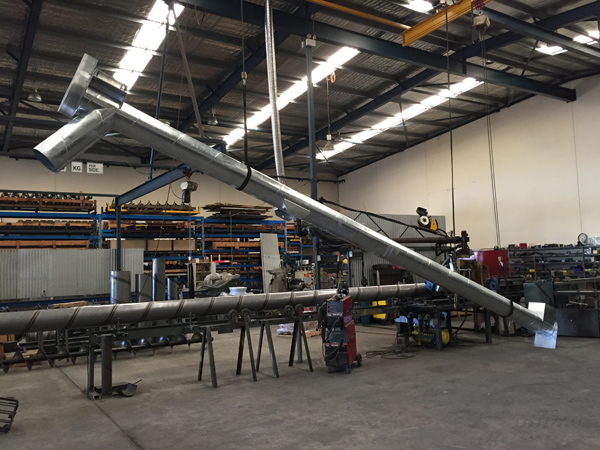

Thinking about repairing or making your own Auger?



Here at Auger Supplies we stock all the necessary components you require to construct your own auger, or if you lack the time, equipment or know-how, we can manufacture the auger for you.

STEP 1 – Check out the diagrams below to get an idea of what base design of auger you require.

STEP 2 – Determine whether you want to get a full kit (good for those starting from scratch), or a part kit (good for those salvaging, repairing, or with access to lathe etc to manufacture some of your own parts).

We recommend looking at the photos
of our DIY Auger Components HERE
so you know exactly what you’re getting!

STEP 3 – See if there any optional extras you require.

STEP 4Contact Us and let us know what size, what style and what length Auger
you require!



WHICH TYPE OF AUGER DO YOU REQUIRE?



A “Cage-Frame Pickup” is ideal for use in a silo boot or a hopper. Auger comes complete with inner cage frame, but if using with an open hopper you will need to add an outer safety mesh to comply with safety requirements.

KIT INCLUDES – Auger Barrel, Template for outlet shute, Flange, Removable Endplate, Bearing assembly, Nuts & Bolts, Cage Bush, Cage Frame arms, Pipe, Flighting, Drive stub with keyway, End stub.



An “Enclosed Pickup” is best supplied where the customer is going to fabricate their own hopper. No inlet is supplied.

KIT INCLUDES – Auger Barrel, Template for outlet shute, Flange, Removable Endplate, Weld on Endplate, 2 x Bearing assembly, Nuts & Bolts, Pipe, Flighting, Drive stub with keyway, End stub.



An “Inlet shute” can be either cylindrical as drawn (fabricated out of spiral weld tube like the outlet shute) or rectangular (fabricated from Laser components and sheet metal)

KIT INCLUDES – Auger Barrel, Template for outlet & inlet shute, Flange, Removable Endplate, Weld on Endplate, 2 x Bearing assembly, Nuts & Bolts, Pipe, Flighting, Drive stub with keyway, End stub.
Or: with Rectangular inlet includes Endplate Hopper set.



An “Open end Pickup” has no barrel at the pickup, nor a bearing or bush assembly holding the auger central. Normally this style of auger is used in field bins where the drive stub feeds through the bearing which is attached to the side of the bin.

KIT INCLUDES – Auger Barrel, Template for outlet shute, Flange, Removable Endplate, Bearing assembly, Nuts & Bolts, Pipe, Flighting, Drive stub with keyway, End stub.



A “Folding Auger” is found mainly on Seed ‘n’ Super Bins and Chaser / Chassis Bins. We stock kits for the most common sizes 6.5″, 7.5″, 8″, 12.5″, 15″ & 18″, but can manufacture kits for other sizes. Supplied to most customers with an enclosed end so it can be fit to bin at correct position. However we can also supply with Rectangular Inlet (as shown)

KIT INCLUDES – Auger Barrel, Template for outlet shute, Flange, Removable Endplate, Bearing assembly, Nuts & Bolts, Pipe, Flighting, Drive stub with keyway, End stub.
Or: with Rectangular inlet includes Endplate Hopper set.



A “Trough Auger” is perfect for applications where you require a long horizontal auger run (such as under silos), or where the product being conveyed has the potential to bridge or jam in a cylindrical casing. Normally supplied with lids, the customer usually DIY’S inlet and outlet shutes to match application. Trough Augers are made in bolt together modules up to 3m long with a hanger bush or bearing  at no more than 3m intervals apart. 6″ is the smallest trough size possible.

KIT INCLUDES – Auger “U” Troughs, Galvanised Lids, Flanges & Removable Endplates with Bearing assembly for each end, Joining flanges for each module, Nuts & Bolts, Pipe, Flighting, Drive stub with keyway, End stub, Joining Stubs for each module, Hanger Bearing assemblies for each module.



OPTIONAL EXTRAS

Do you require:

  • Electric Motor Mount – fitted at top of auger outlet end
  • Hydraulic Motor Mount – fitted at end of auger outlet end
  • Barrel Saddle Support – a thick rolled plate to weld onto the barrel, used where extra support is required.
  • Barrel Clamps – bolt clamp onto barrel to DIY Support Framework
  • Undercarriage – with or without wheels, and/or winch
  • Motor – How is your auger being powered? Electric, hydraulic, petrol? Belt or chain drive?



GOT QUESTIONS?? CONTACT US FOR FRIENDLY ADVICE & SERVICE!!
